Auxiliary, Cutting & Coil Processing Equipment

Decoilers, stackers, slitting, cut-to-length, punching, cutting and bending equipment.

Best suited forFor completing a roll forming line or upgrading material preparation and handling.

Prepare for quotationCoil weight and width, material, line speed, part length and interface requirements.

BUYER'S DIRECT ANSWER

Specify each supporting process before choosing equipment

A decoiler, stacker, slitting line, press brake and punch solve different production problems. Start with the coil and finished-part drawings, the existing line layout, material grade, thickness range, punching layout if required, target output and electrical/control interfaces. Ask our factory team to identify the exact equipment and demonstrate its fit to those inputs.

Equipment request	Buyer input that changes the choice	Evidence to check before acceptance

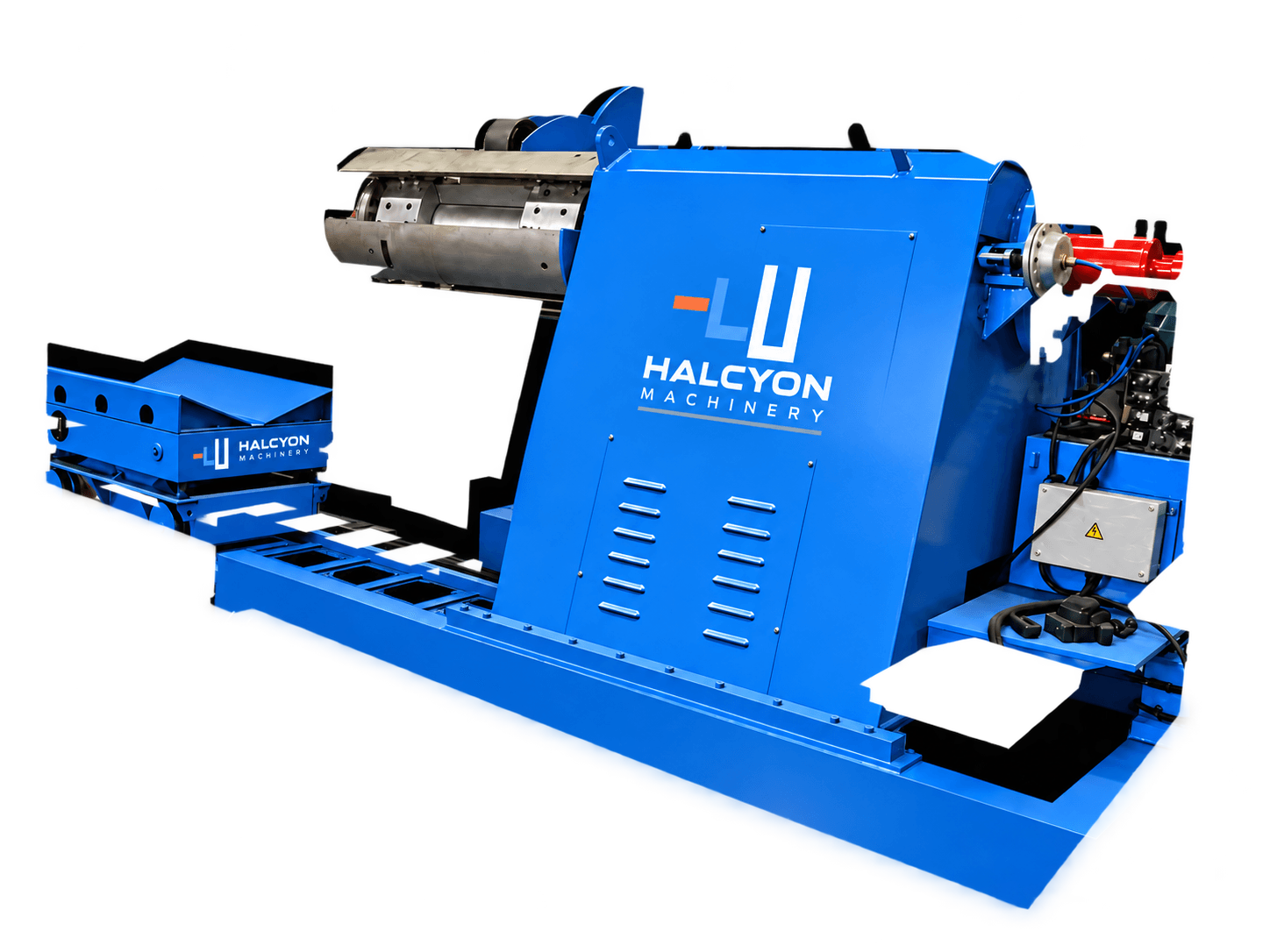

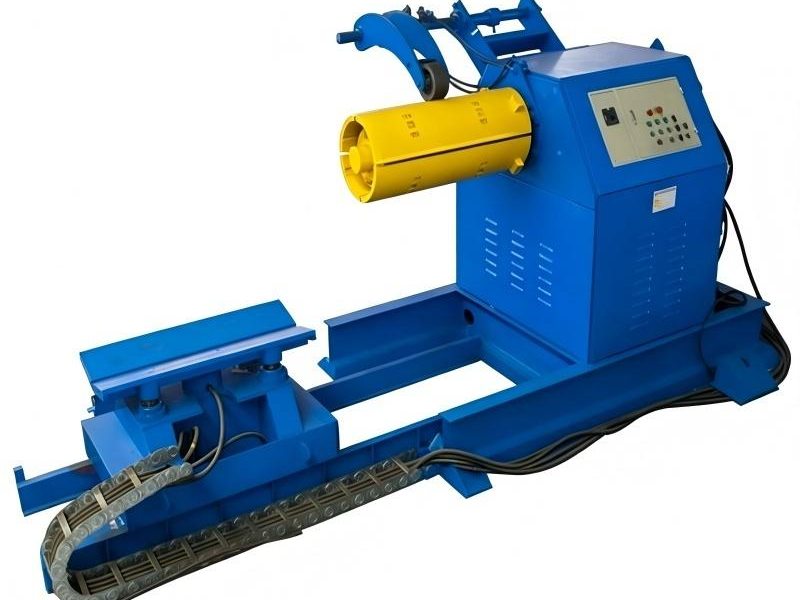

Decoiler and coil car	Coil mass, width, inner and outer diameters, loading method, feed direction and floor space.	Match the offered machine's documented rating and layout to the actual coil; test loading, feeding and stop/restart safely.
Finished-part stacker	Section drawing, cut lengths, cut cycle, bundle plan, surface finish and discharge route.	Use identified trial parts to check counting, alignment, scratching and bundle removal with the host line.

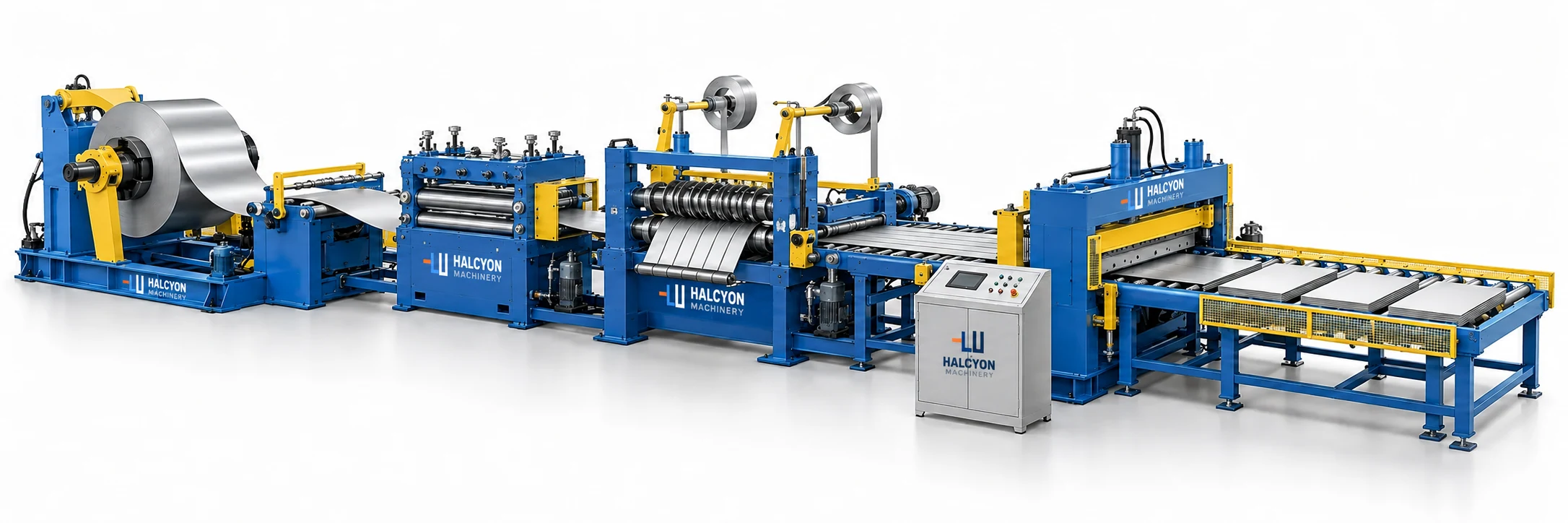

Slitting or cut-to-length	Input coil, required strip or sheet widths, cut length, edge and surface requirements.	Measure samples and inspect cut edges against the agreed drawing and method; do not infer accuracy from a category photo.

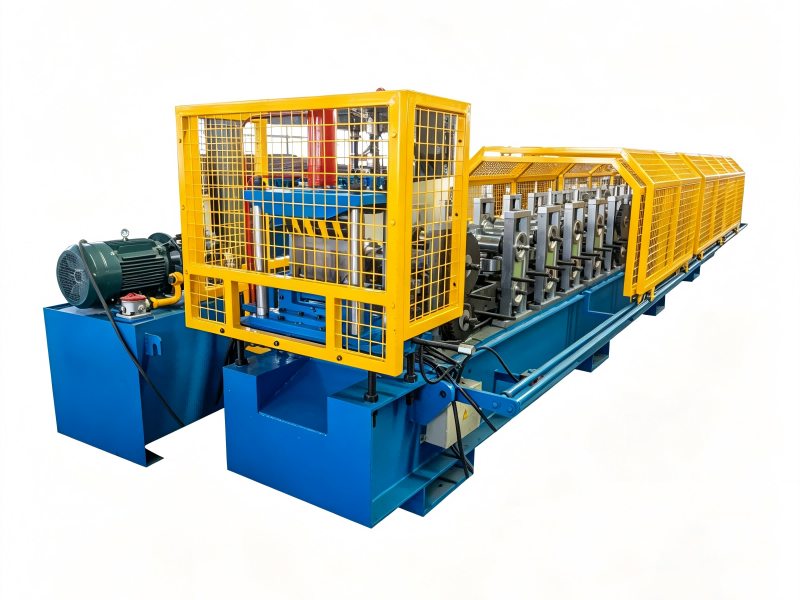

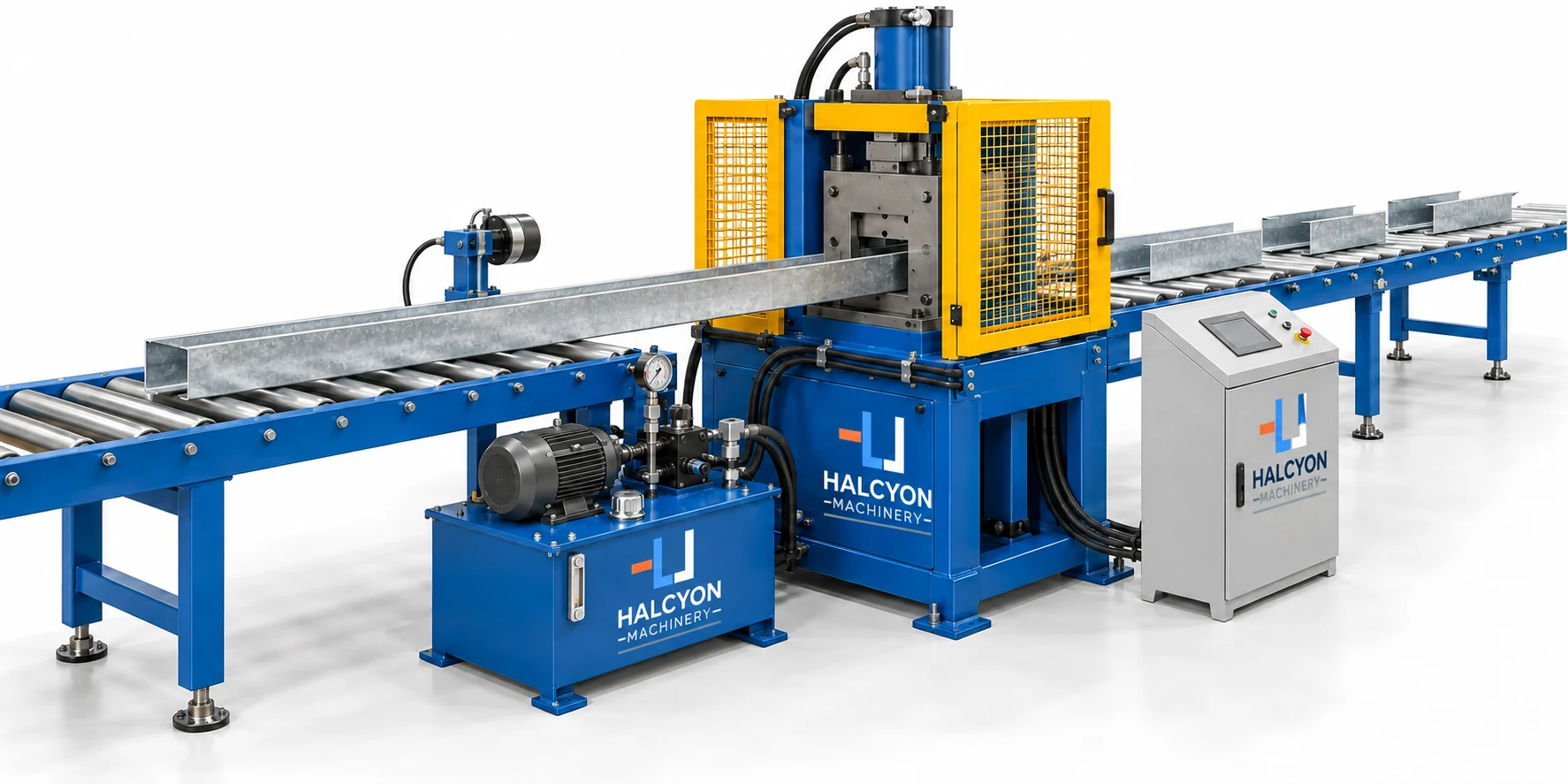

Punching or cutting module	Hole coordinates, profile section, material, line speed and integration controls.	Check hole location, cut length, scrap handling and the interlocked stop sequence on trial material.

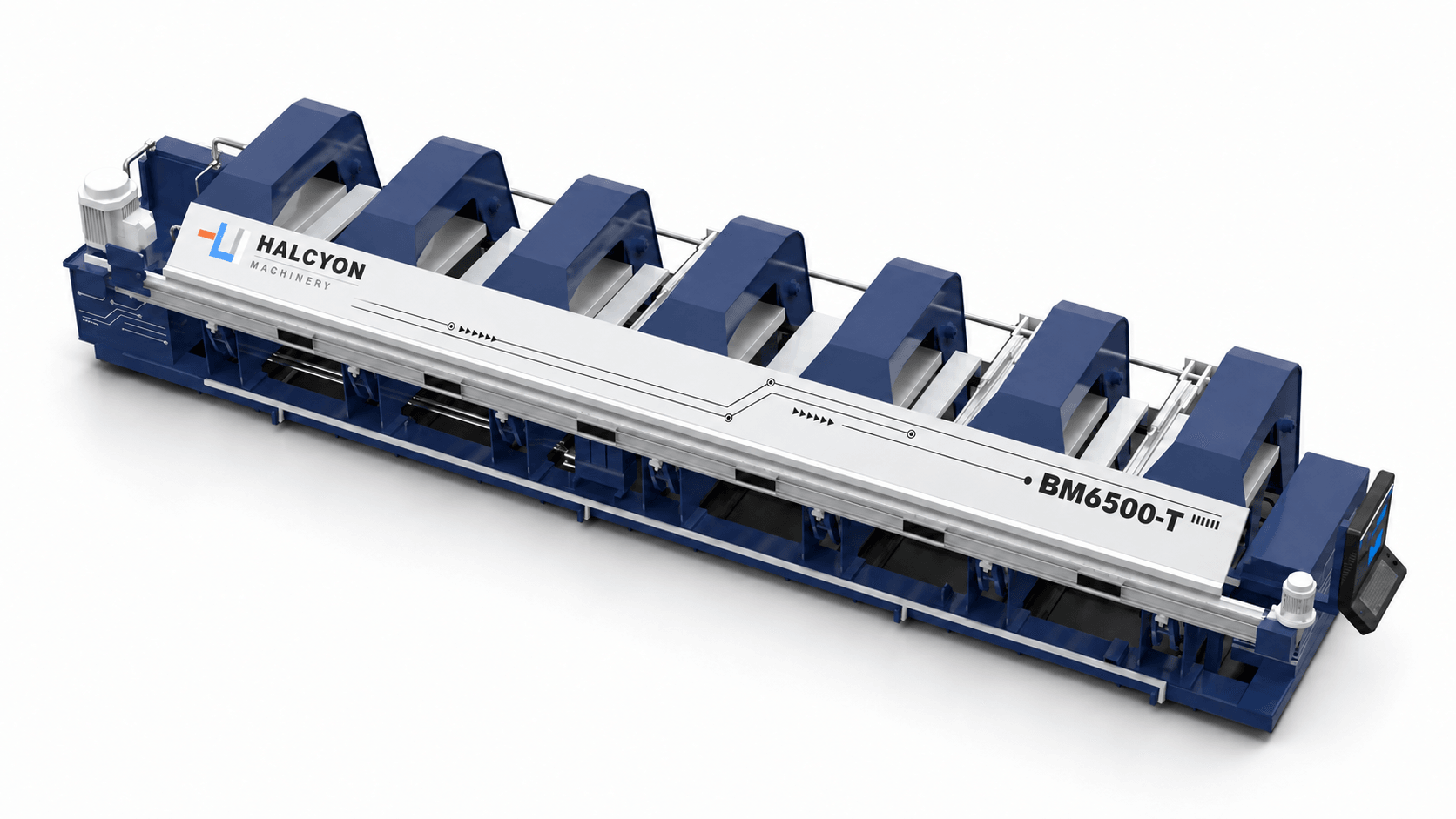

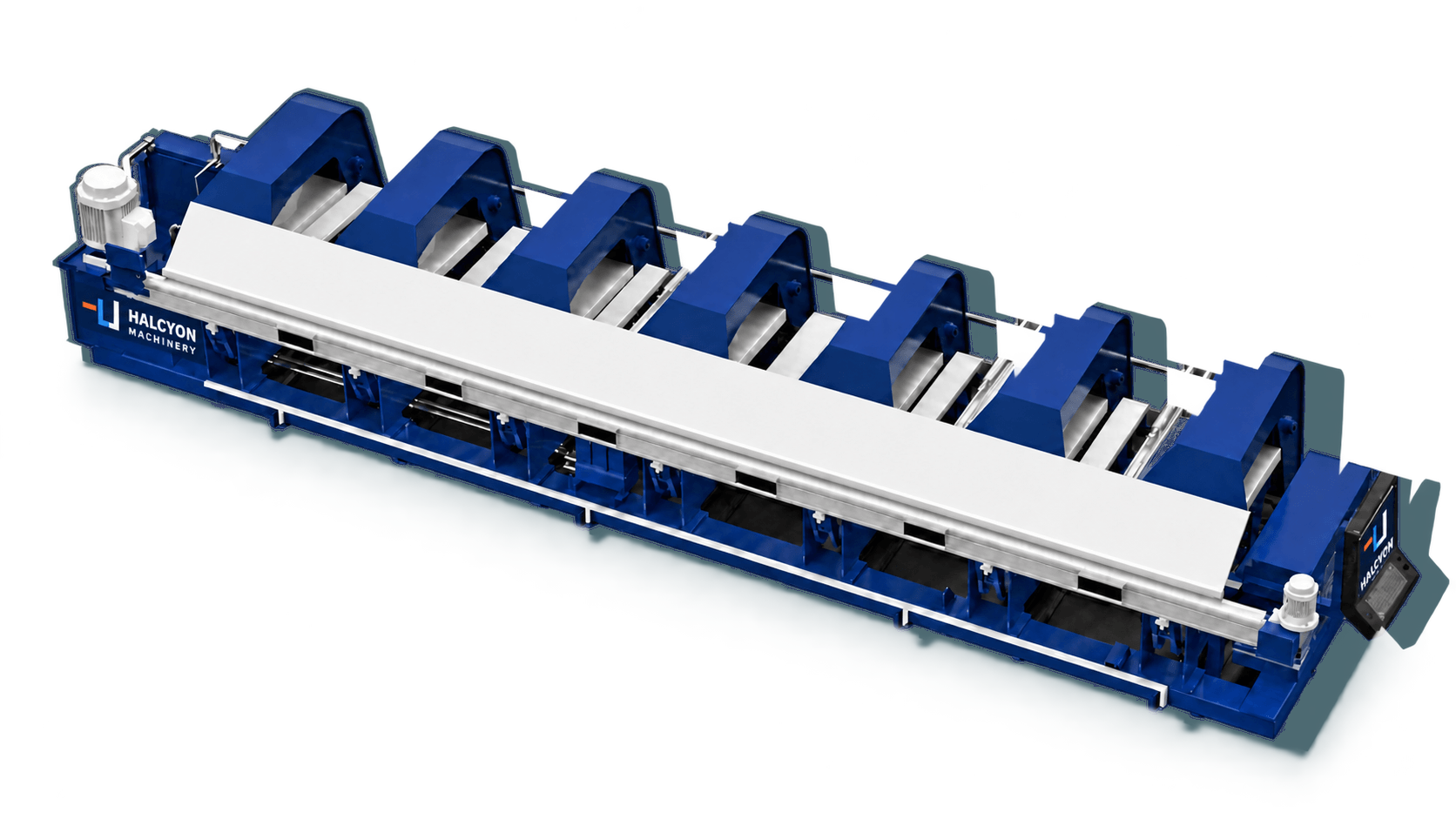

Press brake or bending	Part drawing, bend sequence, material, tooling and finished-part tolerances.	Measure first-off bends and confirm tooling, guarding and operator access for the offered setup.

Scope: these are buyer checks, not published capacities or proof that one accessory fits every line. Halcyon handles specification and supply factory-direct from our Xiamen production base; rated values and acceptance criteria must be tied to the named machine and order.

Source and review: Halcyon Machinery procurement checklist, reviewed 24 September 2026. For a comparable proposal, send your drawings, material and line details.

For a proposed slitting line, use the strip-width and edge acceptance guide to identify every output lane, edge criteria and collection or recoiling arrangement. Cut-to-length sheets and recoiled narrow strip are different outputs; confirm the included equipment and trial for the requested mode.

MODEL RANGE
