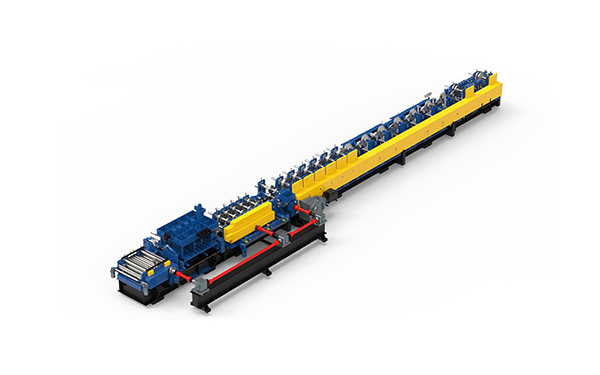

Automatic C/Z Purlin Configurations
Compare four separately documented platforms by section, steel grade, thickness and punching requirement.
HALCYON MACHINERYPurlin & Structural Profile MachinesEngineered around your finished profile
PURLIN & STRUCTURAL PROFILES
Request a proposalPurlin & Structural Profile Machines
Compare C/Z purlin, hat, omega and custom structural-profile lines by the finished section and the production problem. Each linked page covers a different selection decision. If you make only C sections, start with the C purlin machine selection guide. For slotted PV mounting rails or support brackets, use the solar mounting profile machine guide; a building purlin drawing does not establish the rail slot or clamp fit.
Best suited forFor warehouses, industrial buildings, solar structures and prefabricated steel systems.
Prepare for quotationSection drawing, steel grade, thickness, hole pattern and target output.
Price range: C/Z purlin roll forming machines
US$39,000–62,000 (standard) · US$72,000–143,000 (premium), FOB China
Standard covers the first two configuration levels (single-profile and multi-profile / quick-change); premium covers fully automatic lines.
Final price depends on profile, thickness, speed, punching and automation. Excludes freight, import duties and installation. Send your profile drawing for a quotation within 24 hours. North American configurations (480V/60Hz, UL and local requirements) are quoted separately.
Large complete lines (e.g. truck chassis beam lines or full cable tray lines) are quoted per project, typically above US$150,000.
Manufactured in our Xiamen factory · 35+ years of roll forming experience.
Get a quote for this machine
Send your profile drawing or a photo of the profile. We reply within 24 hours with a configuration and price.
Commercial terms
- Lead time
- standard machines 30–60 days; automatic and heavy-duty lines 60–120 days (confirmed in the quotation).
- Warranty
- 12 months on the machine, lifetime technical support by video and remote guidance; wear parts excluded.
- Payment
- 30% deposit; 70% before shipment, after you approve the trial-run video.
- Shipping
- FOB Xiamen, China.
MODEL RANGE
Compare machines in this family
Open each model page for its drawing-based selection checks. Final material limits, output, tooling and acceptance must be agreed for the offered build. N, S, L and M cards show an HCZ-F7 platform illustration, not photographs of those exact machines. The F card shows components published on the separate HCZ-450F reference page, not a complete currently quoted FC/FX line. Historical variant names do not establish current availability.
Selection guide
C-only selection guide
C Purlin Roll Forming Machine

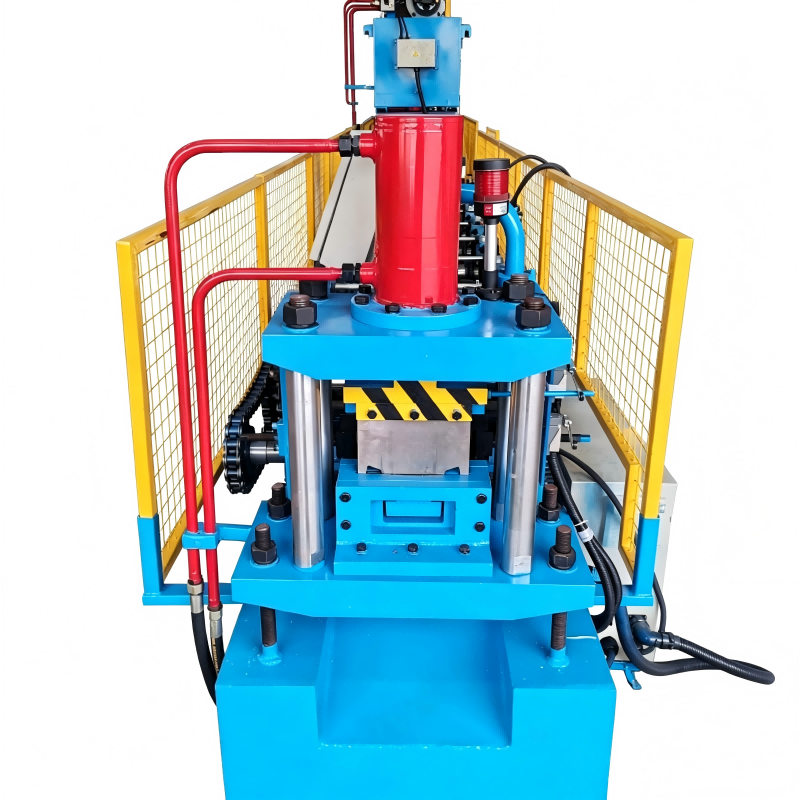

Compare a fixed C reference with adjustable C lines by approved section, steel, punching and accepted output.
Model N
N Series HCZ-300N C/Z Purlin Changeover
Historical HC-300N: C only; HZ-350N: Z only; HCZ-300N: C/Z. Confirm the exact current offered variant.
Model S
S Series HC-300S C and HCZ-300S C/Z Machines
Historical HC-300S: C only; HCZ-300S: C/Z. Specify the offered model and require trial parts for the included profiles.
Model L
L Series HC-300L C-Section Machine
Historical HC-300L: C only; HCZ-300L: C/Z. Confirm current tooling; hat sections require separate evidence.
Model M
M Series Small C-Section Forming Machine
Small C-profile family. Check complete drawings, material limits and tooling for the current proposal. Do not infer Z capability.
F-series reference
F Series HC-300F and HCZ-300F Purlin Machines

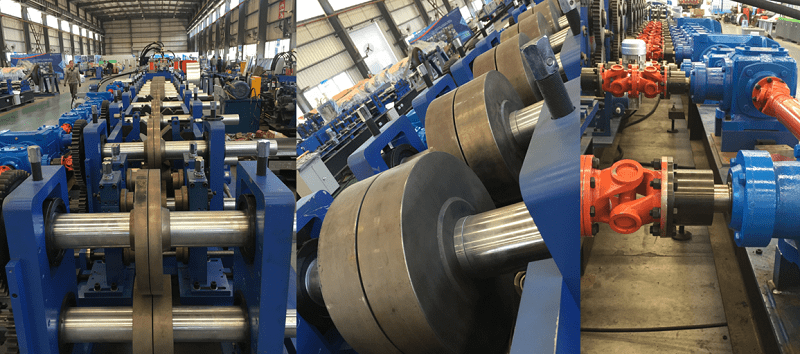

Historical HC-300F: C only; HCZ-300F: C/Z. HCZ-450F is a separately documented example; its parameters do not apply to every F build.
Model LA

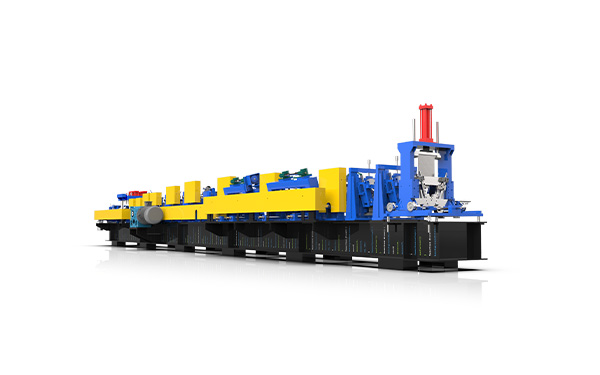

LA Hat Profile Roll Forming Machine
Hat-profile equipment reference; omega compatibility requires drawing and tooling review.
Model HSP-200

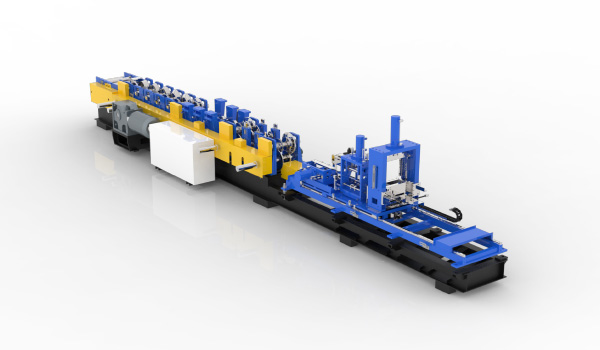

HSP-200 Multi-Size Secondary Purlin Line
Multi-specification secondary-purlin model; verify the quoted changeover scope.
BUYER ROUTE
Which purlin machine page should you open?
This catalogue covers different finished sections and production patterns. A single machine does not inherit the capacity or changeover method of every model shown below.
| Your production question | Open this page | Evidence to request |
|---|---|---|
| One approved section dominates the schedule | Fixed, manual or automatic line selection | Drawings, batch mix, first acceptable part and setup scrap. |
| C and Z sizes change frequently | Four automatic C/Z configurations | Two-profile changeover trial with the actual coil and hole pattern. |
| Z-section laps and bolt holes govern fit | Dedicated Z-purlin review | Approved lap detail, handedness and paired-hole registration. |
| Hat, omega or custom secondary profiles are required | Hat and omega line or custom steel section buyer review | Profile drawing, material grade, tolerances and forming sample. |
Selection rule: send the profile drawing, steel grade, thickness range, punching layout and target output. The specific model page holds documented reference data; only the accepted technical agreement defines the supplied machine. Halcyon supplies this equipment factory-direct from our Xiamen production base.
HOW TO SELECT
The model name is only the starting point
Material strength, thickness, profile geometry, punching frequency and output target determine the final line configuration.
- Finished profileDimensioned cross-section and tolerances
- MaterialGrade, thickness, coating and coil data
- OperationsHole pattern, marking, cutting and stacking
- OutputLengths, batch sizes and target per shift
Related purlin configurations
Review the profile drawing and material before selecting a dedicated line.
