Fabrication & Welding Equipment

Heavy steel processing lines, section welding stations, node workstations and robot cells.

Best suited forFor structural members, connection nodes and repeatable steel fabrication workflows.

Prepare for quotationPart drawings, weld specification, material range, takt time and handling method.

BUYER'S DIRECT ANSWER

Separate cutting from welding before selecting a cell

A laser-cut structural member, a welded section and a connection node have different fixtures, process controls and inspection records. Send the part or assembly drawing, steel grade and thickness range, joint and weld specification where applicable, target output, material handling route and destination electrical requirements. Halcyon can arrange a configuration review with our factory team, but a rendered equipment image does not establish a specific model, installed cell or acceptance result.

Production task	Define before quotation	Evidence to ask for

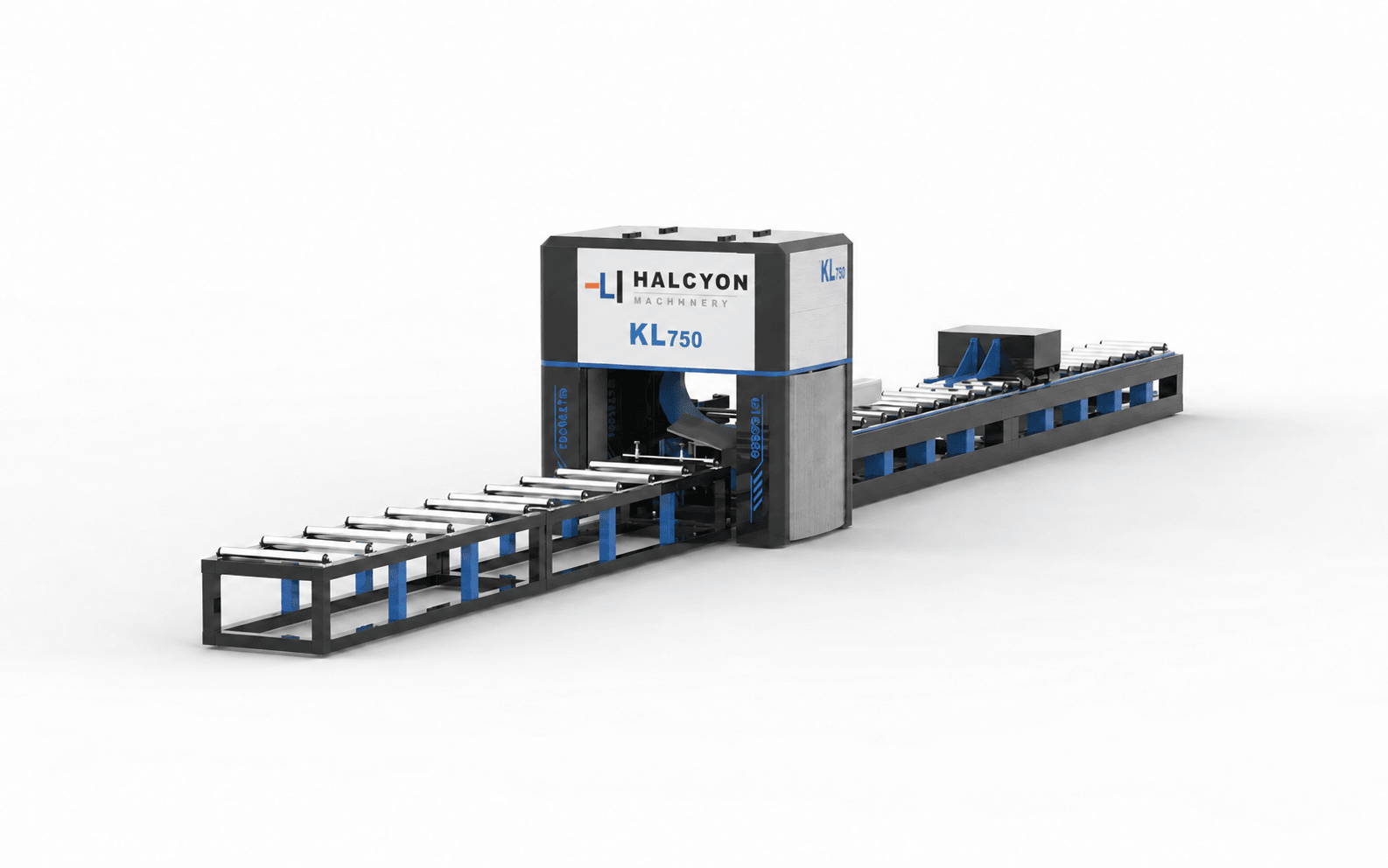

Beam laser cutting machine review	Section and cut drawings, stock lengths, hole and bevel requirements, handling and marking scope.	Measure identified trial cuts and holes against the approved drawing; confirm cut quality and handling on the proposed material.

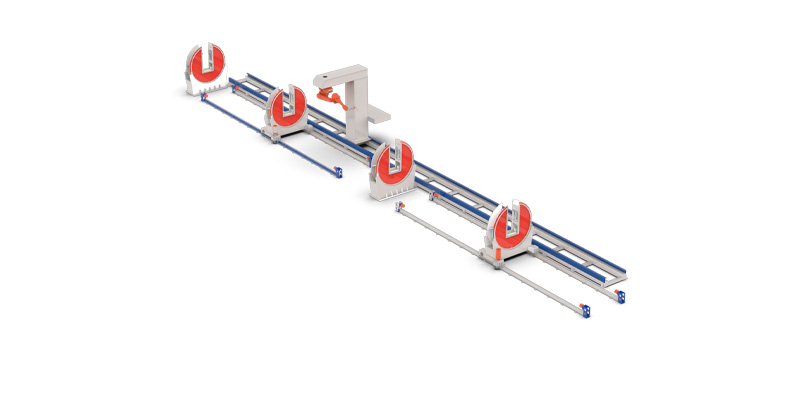

Section welding station	Joint geometry, weld procedure, fixturing datums, seam access, material range and operator interface.	Record fit-up, weld parameters and inspection method agreed for a representative assembly.

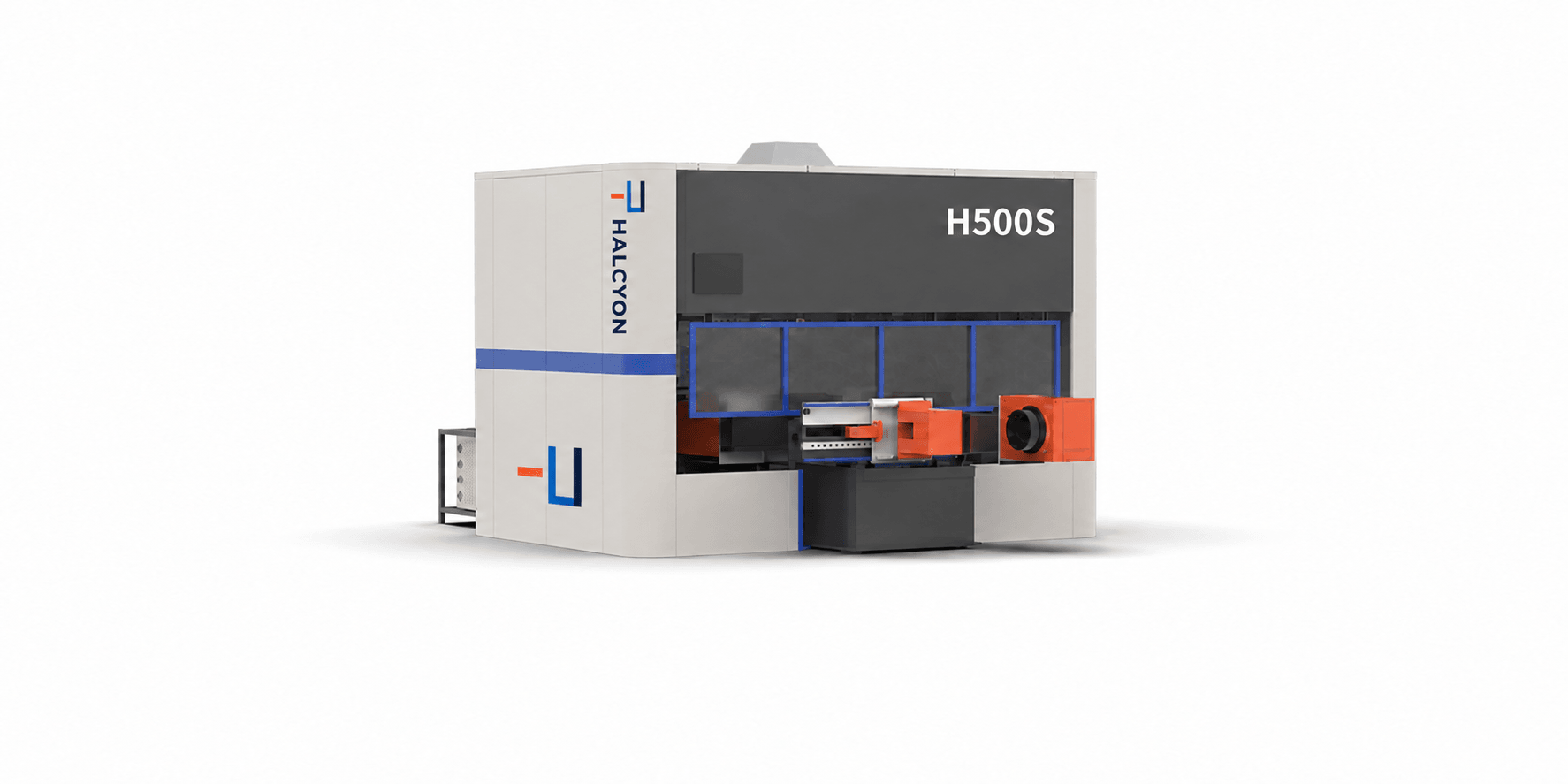

Connection-node workstation	Node drawing, part variation, tack/finish sequence, fixture changeover and extraction/access needs.	Trial the specified node; check fixture repeatability, access and the agreed weld inspection record.
Robotic welding cell	Part presentation, cycle target, program changeover, safety perimeter and upstream/downstream handling.	Witness a representative cycle and confirm guarding, program ownership and acceptance criteria.

Scope: the checks above are a procurement framework, not certified capacity, weld qualification or proof of a factory test. Exact machine identity, configuration and contractual acceptance method must be confirmed for each offer. Send the drawings and production brief.

Source and review: Halcyon Machinery buyer-review framework, reviewed 24 September 2026.
