Identify the roof profile
Mark rib height, pitch, pan width and the edge that forms the side lap on the approved drawing.
Roof & Wall Cladding Machines
Roof Sheet Roll Forming Machine
Compare roof sheet roll forming equipment against your panel drawing, effective cover width, material and trial sample. The quoted configuration is confirmed after a drawing and production review.
Drawing basedprofile and tooling
Custommodel family
Operationsconfirmed for the quotation

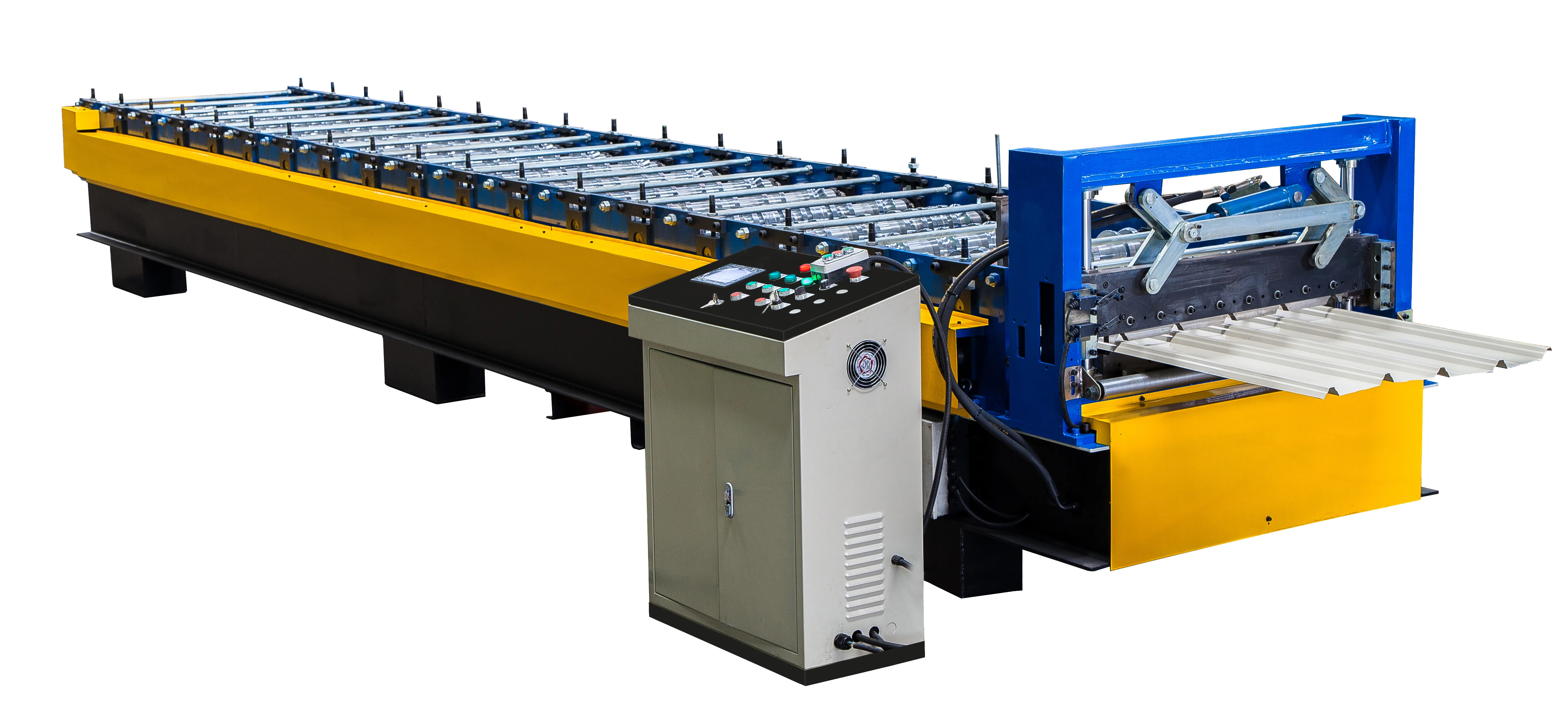

production-base equipment photo showing one profiled panel at the run-out. This is an example line, not the quoted machine or proof of the requested cover width, speed or acceptance. Confirm the proposed profile and sample against your drawing. View the full-resolution reference photo.
Buyer decision
Start with the finished roof sheet
Direct answer: A “roof sheet making machine” listing names the equipment category, not a proven match to your roof panel. Send a dimensioned drawing showing rib height, pitch, overlap edge and effective cover width; then compare an identified trial sheet against that same drawing.
Specify the coated coil
State steel grade, base-metal thickness, coating and coil width so the proposed tooling and trial use the same material basis.
Test the installed overlap
Join two identified trial sheets in the intended direction and measure effective cover width separately from overall sheet width.
Inspect the surface and cut
Check first-off and repeat sheets for coating contact marks, edge condition and the agreed finished length. For prepainted coil, use identified trial material and inspect guide, forming, cut-off and outfeed contact points; the surface-quality buyer guide lists the evidence to record.
Profile and material range
Technical specification framework
Values below separate confirmed product information from project-dependent engineering data.
- Model / family
- Custom
- Final guaranteed values
- Issued after drawing, material and production-cycle review
- Roll stations and shaft size
- Confirmed from forming analysis
- Main drive and installed power
- Confirmed for material strength, thickness and line modules
- Punching / marking
- Hole pattern and quantity to approved drawing
- Cutting method
- Pre-cut, post-cut or flying option selected by profile
- Electrical standard
- Configured for destination voltage, frequency and components
- Length and tolerance
- Guaranteed in the signed technical agreement
Reference-data rule: this page contains selection questions rather than model-specific performance figures. Power, speed, tooling, dimensions and guaranteed accuracy become binding only when repeated in the signed technical agreement for your project.
Production process
The complete production sequence
The proposal defines every station, interface, production assumption and acceptance checkpoint.
Coil loading
Leveling and guiding
Punching / marking
Roll forming
Cutting to length
Discharge and inspection
Drawing-to-sample check
How to verify a roof panel before approving the line
Trapezoidal, corrugated and standing-seam panels are different profile families. Compare quotations only after identifying the intended panel drawing and its installation overlap.
- Drawing revision
- Use the same dimensioned revision for every supplier and the trial sample.
- Material input
- State steel grade, base-metal thickness, coating and coil width separately.
- Panel geometry
- Mark rib height, rib pitch, flat sections and overlap edge on the drawing.
- Effective cover width
- Define the two measurement endpoints; do not substitute overall sheet width.
- Operations
- Record required hole layout, end cut, notching and handling modules.
- Trial sheet
- Identify the tooling, material, date and measured sample dimensions.
Watch a roof-panel forming trial inspection route
In this 27-second production-base workshop clip, the camera follows a formed roof panel and shows roller contact areas. Use it to ask for the approved panel drawing, trial coil record and visible surface checks. The clip does not identify the offered machine configuration, establish production speed, certify coating quality or replace measured sample acceptance. English narration and synchronized visible English captions are included.
Video source: Halcyon Machinery's production-base workshop clip, published 25 September 2026. The separate Xiamen trial-sheet photograph above is not claimed to show this same line. AI English narration is disclosed on the video.
Optional configuration
Select the automation your order requires
Options are quoted only when they match the approved production workflow.
Coil and coating route
Confirm the proposed decoiler, guides and contact points against the stated coil weight, coating and surface requirements.
Panel family
Identify whether the quotation covers the approved trapezoidal, corrugated or other drawing; a family name does not include every toolset.
Side-lap geometry
Record the intended overlap direction and the trial method for measuring effective installed cover width.
Cut and end detail
Specify finished lengths, cut-edge checks and any drawing-dependent end cuts before selecting the cutting arrangement.
Sheet run-out
Agree how trial sheets are supported, collected and inspected without damaging the stated surface finish.
Trial evidence
List the drawing revision, coil identity, measured first-off and repeat sheets, and acceptance record in the offer.
Applications and related models
Choose the model after the profile review
Trapezoidal, corrugated and wall-cladding panels for building envelopes. Buying your first line? Read how to choose and buy a metal roofing machine.
FAQ
Roof sheet roll forming machine buyer questions
What roof sheet drawing should I send?
Send the approved panel cross-section showing rib height and pitch, both side-lap edges, overall sheet width and intended effective cover width. Add the coated-coil grade, base-metal thickness, finish and cut-length schedule. The tooling and trial must be checked against that exact drawing.
Can one roof sheet roll forming line make corrugated and trapezoidal panels?
Do not assume so from a generic line photo or model name. These are different profile drawings. Ask our factory team to identify and quote the tooling, adjustments and trial sheets required for each proposed panel family.
What should a roof sheet machine quotation and trial prove?
List the included decoiler, guides, forming tools, cut-off, run-out and handling scope, with the stated coil and operating conditions. Measure identified trial sheets against the approved drawing, join two in the intended overlap direction, and check effective cover width, surface condition and finished length before acceptance.
Panel drawing to trial sheet
How should a roof panel roll forming machine prove cover width?
Direct answer: The buyer should check a pair of identified trial sheets joined in the drawing's specified overlap direction. Measure the finished sheet width and the effective installed cover width separately, at agreed datums, then compare the assembled joint, ribs and cut length with the approved profile drawing. A single unjoined sheet cannot prove the coverage of the installed roof.
| Check | Record from the trial | Why the buyer needs it |
|---|---|---|
| Drawing and coil | Drawing revision, steel grade, coating, thickness and coil width | Connects the sample to the proposed tooling and material range |
| Sheet geometry | Rib height and pitch, pan width, edge geometry and finished length | Checks whether the produced panel matches the ordered section |
| Installed coverage | Two-sheet side lap, overlap direction and measured effective cover | Separates sheet width from the roof area covered after assembly |
| Surface and repetition | First-off and repeat samples, coating contact marks and cut edge | Shows whether the result is repeatable on the specified material |
Terminology: Buyers may search for a “roof sheet roll forming machine,” “metal roof panel machine” or “roof panel roll former.” These terms refer to equipment procurement here, not the purchase of finished roofing sheets. A corrugated, trapezoidal or concealed-fix drawing needs its own tool and joint review; do not infer that one quoted line makes all three. If your project needs both roof and wall cladding profiles, see the roof and wall sheet line scope to define each drawing and trial sample before comparing tooling.
Factory roof-panel line or portable job-site machine?
Searches for a “metal roofing machine for sale” can include both factory-installed panel production lines and portable job-site roll formers. This page covers a factory production-line proposal matched to a roof-panel drawing. If you need a trailer-mounted or on-site machine instead, say so in the enquiry; portability is not implied by the catalogue photo or by the words “roofing machine.” Use the factory-versus-portable comparison to check which production route fits your site before asking for a quote.
For a comparable factory-line quotation, identify the panel drawing and intended overlap, coil grade and thickness, required punching or end-cut layout, target output, site power supply and the handling or stacking scope. Ask each supplier to mark included modules and exclusions against the same drawing before comparing offers. A price or delivery date cannot be inferred from a generic machine name.
Source and limit: LYSAGHT's roofing guide explains why sheet width and effective cover differ with side overlap. The acceptance steps and roof-sheet-specific buyer questions above are Halcyon Machinery's buyer-review method, updated 2 October 2026; they are not measured results for a named machine. Use the full roof-sheet lap trial guide for the recording method.
How much does a roof sheet roll forming machine cost?
Direct answer: We quote every roof sheet roll forming machine by configuration, not from a fixed price list. The price depends on the profile drawing, material thickness, punching and cutting, the level of automation and the delivery terms. Send your drawing and we reply with a written quotation for that exact configuration.
| Configuration level | What changes | Usually chosen for |
|---|---|---|
| Single-profile line | One panel profile with post-cutting and manual run-out. | One standard roof or wall profile |
| Double-layer or multi-profile line | Two panel profiles on one machine, or exchangeable tooling. | Buyers who sell two common profiles |
| Automatic line with stacking | Automatic cut-to-length, run-out and stacking for higher daily volume. | Continuous production for distributors and contractors |
Price rises from the first level to the third as tooling, servo control and automation are added.
What affects the price
- Roof profile (corrugated, trapezoidal, glazed tile) and cover width
- Steel or aluminium thickness and coating
- Single or double-layer machine
- Cutting method and maximum sheet length
- Ridge cap, curving or other add-on machines
- Control system and main component brands (PLC, servo, hydraulics)
- Decoiler, outfeed table and automatic stacking
- Delivery terms (FOB or CIF), packing and spare parts
Send your profile drawing — quotation within 24 hoursInclude steel grade, thickness range, punching layout and target output. Factory-direct from our Xiamen production base.
Roll forming machines from Halcyon's Xiamen factory have been used on 150+ construction projects (2022–2026) in China and abroad, including an airport in Iraq, a national stadium in Senegal, resort buildings in the Maldives and a coal preparation plant in Mongolia. See the reference projects.
Quotation comparison
What determines a roof sheet roll forming machine price?
Compare quotations for the same panel drawing, coated coil and finished-length schedule. Ask the supplier to itemize the forming tools, coil handling, cut-off and sheet collection rather than comparing an unexplained machine total. Halcyon reviews the profile, coil and complete equipment scope before quotation. Price and delivery must be confirmed for that configuration.
- One drawing or several: identify each panel profile and side lap. A second profile family needs an explicit tooling and changeover proposal; a generic roof-sheet name does not include it.
- Short and long sheets: specify the shortest and longest finished pieces and ask which cutting, support and collection arrangement is included for that schedule.
- Surface and sample acceptance: include the stated coated coil, identified trial sheets, effective-cover and overlap checks, agreed measurement limits and treatment of rejected samples in the comparison.
- Delivery and assistance: distinguish the machine and optional stacker from packing, transport, site preparation, installation assistance, training and destination import costs. Confirm who supplies each item.
Request an offer showing inclusions, exclusions, currency, validity and delivery basis. These fields must be confirmed for the actual project; a catalogue photograph cannot establish the delivered scope. Use the itemized quotation comparison guide to keep supplier offers comparable, then send your panel drawing and production schedule. Trial-sheet acceptance remains separate from the roof designer's checks on the complete installed roof system.
Send your drawing for a matched proposal
We will review the model-specific configuration directly with the factory production team and identify which values need a trial or technical agreement.
- Dimensioned profile drawing
- Material grade and thickness
- Hole pattern and finished lengths
- Target output per shift
- Power supply and destination country
BMT or TCT: which roof-sheet thickness are you quoting?
Specify the thickness basis with the coated-coil details. Base metal thickness (BMT) describes the steel substrate; total coated thickness (TCT) includes the coating. These figures are not interchangeable when comparing machine proposals or the panel drawing.
For the trial, record coil identity, grade, coating and the agreed thickness basis. Ask our factory team to confirm the tooling and material envelope for that coil, then inspect the formed sheet and side lap. Do not derive substrate thickness from an unspecified coated-sheet measurement.
Material terminology source: BlueScope Technical Bulletin TB-14, BMT and TCT terminology, reviewed 3 October 2026. This reference explains the material terms; it is not a Halcyon machine approval or a finished-building compliance certificate.
