Usable cover width
Record overall width and effective installed width separately. The latter depends on the actual joint overlap and assembly method.
Commercial vehicle panels
Truck Body Panel Roll Forming Line
A truck-body panel line should be specified from the finished panel and its joint, not by equipment appearance. Our Xiamen production base lists a roll forming machine for truck bodies, container panels and dust-collector box panels; the precise profile and production scope require an order-specific review.
Send the panel cross-section, steel grade, thickness range, usable cover width, edge connection, finished length and target output. Identify whether the panel will form a side wall, container skin or another enclosure; these are different assembly requirements. Do not infer floor or roof capability without the corresponding drawings and a demonstrated sample.
Panel drawingprofile and connection
Joint fitassemble trial pieces
Measured runverify offered scope

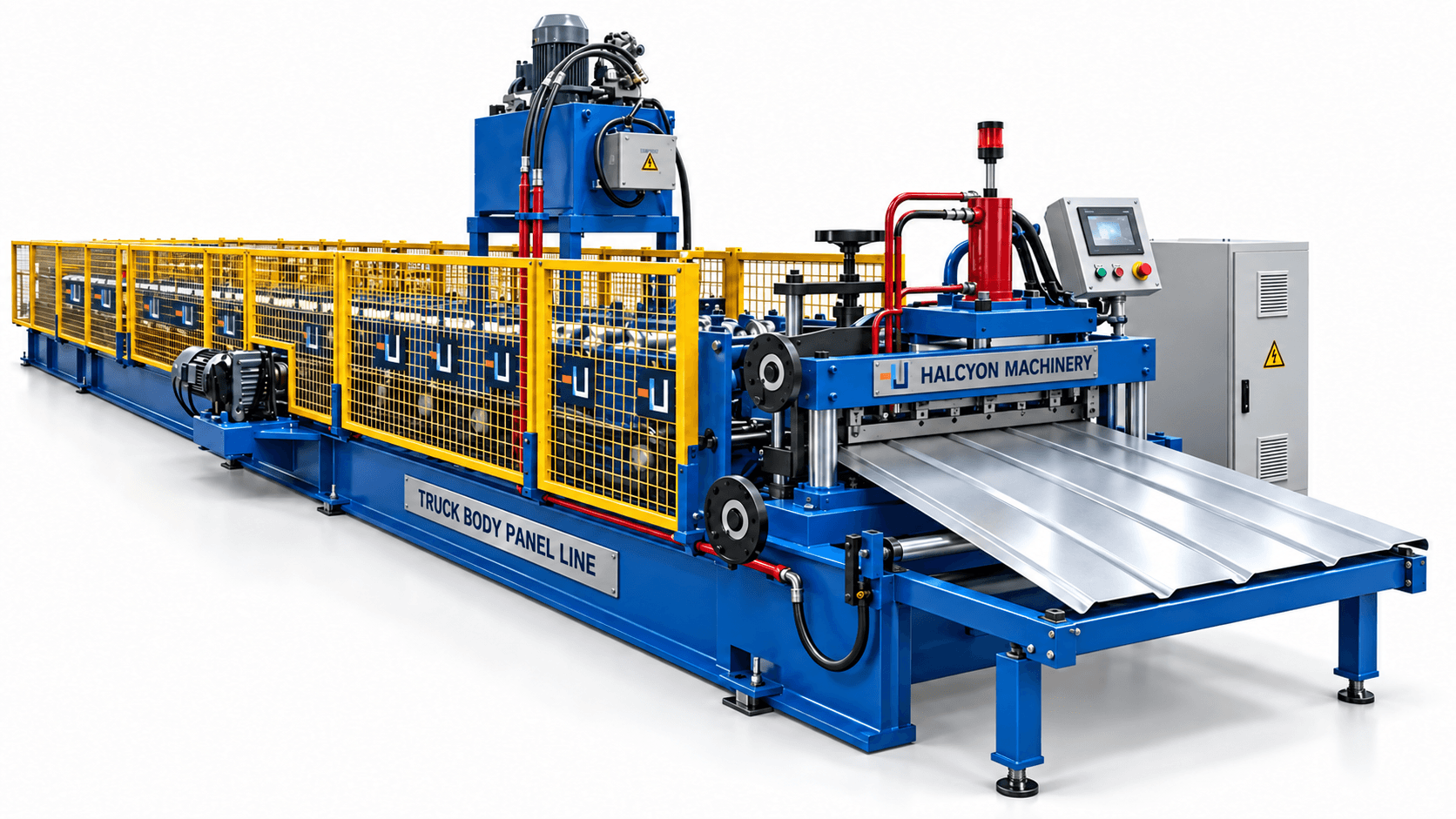

Illustrative rendering only. It is not a factory photograph or proof of the equipment, output or panel profile offered.
Panel procurement
Prove the usable panel, not just the machine run
The first-off panels must fit the intended body or container connection.
Edge joint
Provide both mating edges on the drawing. Assemble two sample panels and check fit, engagement and alignment.
Surface condition
Identify coating and visible-face requirements. Inspect handling marks after forming, cutting and run-out.
Length and handling
State the longest panel and site handling method so run-out, support and cut-off are sized for the order.
Order-specific values
Confirm the actual panel and production envelope
Our Xiamen production base's public presentation describes a product family. Published promotional figures do not verify every combination of steel grade, width, profile and output for a specific quotation.
- Production-base category
- Our Xiamen production base's truck-body, container and dust-collector box panel roll forming equipment
- Panel profile
- To the buyer's approved section and edge connection
- Material and width
- Confirm for each quoted profile, steel grade and coating
- Cutting and run-out
- Specify for the required length, end condition and handling process
- Speed and shift output
- Verify on agreed trial material, profile, length and handling conditions
- Acceptance
- Measure section, cover width, length, joint fit and visible surface on labelled samples
Source and limit: our Xiamen production base's truck and container panel equipment presentation, checked 26 September 2026, shows the category and reference machine/sample imagery. It does not replace the signed specification or witnessed test for the offered build. Reviewed by Halcyon Machinery on 26 September 2026.
Witnessed acceptance
Test two panels as an assembly
A single attractive sheet does not demonstrate the cover width or edge connection buyers need.
Identify coil
Run agreed profile
Measure width
Assemble two panels
Inspect surface
Record length and output
Related decisions
Match the panel to its assembly
This equipment topic is distinct from a building floor-deck or roof-sheet profile. Compare those machines only when the end-use drawing actually calls for them.
FAQ
Questions before specifying a truck-body panel line
Does this truck-body panel line form chassis rails?
This page covers formed body and enclosure panels, not truck chassis rails. A chassis rail needs its own approved section, steel specification, hole layout and acceptance trial. Do not assume the pictured panel equipment can form it; ask us to verify a separate machine and tooling scope against your chassis drawing.
Does this line automatically cover roof and floor panels?
No. The public product category alone does not establish those profiles. Send each drawing, material and assembly requirement for a separate tooling review.
What is the difference between overall and usable width?
Overall width is the measured sheet edge-to-edge size. Usable width is the coverage after panels are joined at the agreed overlap or connection; verify it with assembled trial panels.
Can the promotional speed be used as our shift output?
No. Request an agreed test using the actual steel, profile, length, joint and handling route, then record good parts and trial duration.
Send the truck-body panel drawing
Halcyon will review the panel with our factory team and return a written configuration and trial scope for the actual end use.
- Panel section and joint
- Steel grade, coating and thickness
- Usable width and finished length
- Holes or cutouts, if required
- Target output and trial criteria
