Gutter Roll Forming Machine: Fixed-Line Scope
Compare a fixed-line gutter machine by the section drawing, material and trial piece; confirm portable K-style, downspout and fitting scope separately.
Need seamless gutters formed at the house? See our portable roll forming machine.
Can one line produce every rainwater component?
Direct answer: No universal configuration should be assumed. A gutter, downspout and elbow have different section and forming requirements. Identify the exact profiles and whether bends, outlets, end caps and joining features are formed on the proposed line, fabricated in a separate operation or purchased. A line quote should state each included tool and station.
- Profile packagegutter and downspout section drawings, tolerances and cut lengths
- Material packagegrade, coating, thickness range, coil width and finish handling
- Joining packageseam, outlet, bracket, bend and end-cap details for the intended system
- Process scopewhich components need separate punching, bending or assembly equipment
- Trial evidencemeasured sections, visible surface condition and a sample joint or bracket fit
Factory line or portable seamless gutter machine?
A fixed production line and a portable on-site seamless gutter machine answer different buying needs. Before comparing quotes, state where the machine will operate, how the coil is loaded, the finished profile and cut length, the intended material, and whether a separate downspout line is required. This page does not claim that every configuration is portable or that one set of tooling makes all rainwater components. Ask for a current photo and a measured trial piece from the configuration actually offered.

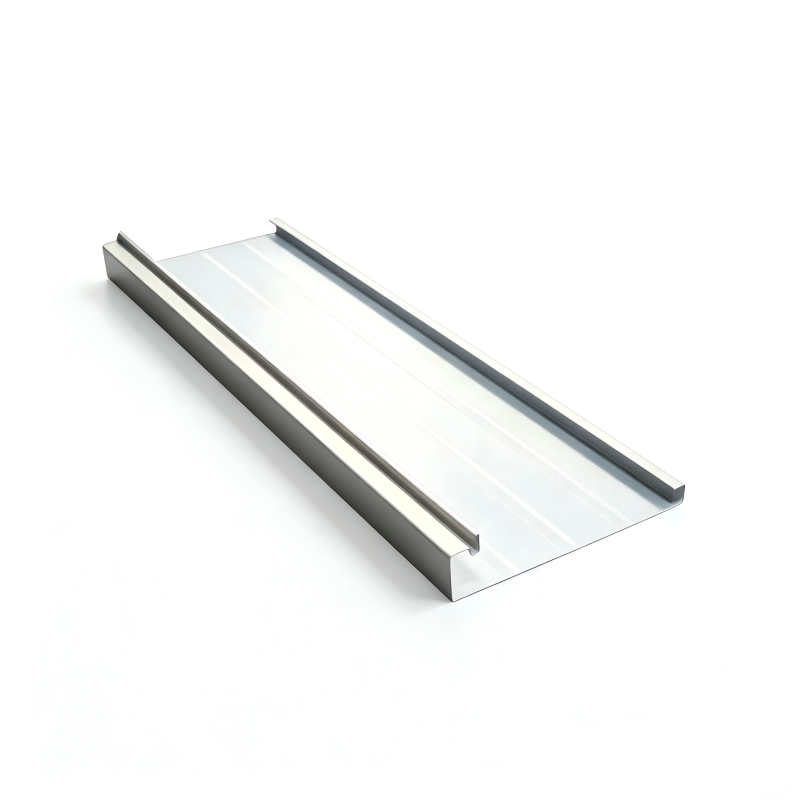

Named fixed-line reference: Our Xiamen production base's published HGT-185 C-shaped gutter machine lists 0.4–0.6 mm galvanized steel, 16 forming stations and a hydraulic post-cut. Those figures describe our Xiamen production base's specific catalogue example, not a universal gutter making machine or a guaranteed Halcyon quotation. Ask which current model and tooling match your drawing; do not infer K-style, half-round, box, portable or downspout capability from this C-shaped example. Confirm the proposed material and a labeled formed sample before accepting the scope.
Gutter machine price: compare offers on the same basis
Buyer answer: there is no verified fixed Halcyon price for all gutter-machine configurations on this page. To compare two quotations, give both suppliers the same section drawing, metal, finish, cut lengths and production location. Ask each to identify the proposed build and separate included equipment, optional modules, excluded work and destination costs. A cheaper headline figure can cover a different scope.
| Price comparison item | What the buyer should verify |
|---|---|
| Profile, material and tooling | The quoted drawing revision, trial coil specification and roll sets. A C-shaped steel reference does not establish aluminum, K-style or half-round capability. |
| Complete line equipment | Which coil-handling, guiding, forming, cutting and discharge equipment is included; list optional or separately sourced modules. |
| Accessories and other components | Identify the tools or separate operations for downpipes, elbows, outlets and brackets. Do not compare a gutter-only quote with a complete drainage-component package. |
| Trial and accepted output | Agree section dimensions, cut-edge and finish checks, bracket/outlet fit, trial lengths and the output record. Retain rejected pieces and adjustments, not only the best sample. |
| Delivery and service | Currency, delivery term and place, packing, freight, taxes, installation, commissioning, training and spares. Record who supplies and pays for each item. |
Download the blank gutter-machine quotation comparison sheet (CSV). The sheet contains twelve comparison items and empty columns for two offers; it is not a Halcyon price list or a completed supplier assessment. Attach the documents supporting each entry, and resolve exclusions before comparing totals.
Send your gutter drawing, material and production location for a scoped quotation. Quote-comparison guidance reviewed 2 October 2026; proposed availability and commercial terms require written confirmation for the actual build.
Separate equipment output from drainage design
A formed sample can demonstrate shape and finish for the trial material. It cannot establish that the gutter size meets a project's rainfall, flow or building-code needs; the responsible designer must confirm those. Buying a line also does not prove a payback period. Compare demand, product mix, labor, tooling and outsourced accessory costs with your own figures. See roof and wall sheet equipment for related cladding production, then send your rainwater profile drawings for a scoped quotation.
Send us your profile drawing
We will review your profile drawing, material, hole pattern and target output with our factory team before confirming the proposed scope and quotation.
Get a quoteTest the gutter, straight downpipe and fittings as different jobs
A gutter drawing does not identify the downpipe tooling, and a straight downpipe run does not prove an elbow or outlet can be made on the same line. Ask our factory team to mark each component in the proposed module list. Keep a sample gutter-to-outlet and downpipe-to-elbow joint beside the measured formed sections. Check seam closure, bracket contact and visible coating at the bend or cut edge using the material specified for the order.
Send each rainwater component drawingTrial evidence by component
- Gutter cross-section, bracket seat and edge hem
- Straight downpipe section and longitudinal seam or joint
- Outlet location, punch or separate fabrication method
- Elbow angle, direction and trial fit to the straight pipe
- Coating condition, finished length and labeled sample material
Is an elbow included with a downpipe forming line?
Do not assume so. The offer should identify the elbow tool or separate bending/fabrication process and its accepted sample.
Does a formed gutter prove the drainage capacity?
No. A machine trial checks dimensions and finish; the project designer must assess rainfall, flow, outlets and installation.
How should different order mixes be compared?
Ask for the included tools, setup steps and accepted output for each required section. Compare any outsourced fitting cost using the buyer's actual volume and labor data.
Source and limit: Halcyon Machinery drawing and sample review, updated 29 September 2026. No universal accessory scope, drainage rating or return-on-investment claim is made.
Inspect the finished cut end
Length alone does not establish fitting acceptance. The gutter cut-end and fitting trial guide separates end geometry, local opening, preparation and mating-part results, with a blank record sheet.
