Rolling Shutter Door Roll Forming Machine

What should a shutter-slat trial demonstrate?

Direct answer: Form labeled slats from the specified material, interlock several pieces and trial-fit them in the intended guide. Measure cover width, hook/socket engagement, cut length and visible surface condition. A slat photograph does not prove that the curtain, guide, barrel and motor work together as a safe finished door.

• Slatsection, interlock, cover width and finish drawing
• Materialgrade, coating, thickness range and coil width
• Guidechannel clearance and end-retention detail
• Productioncut lengths, punching or notches and target output
• Trialmulti-slat fit, guide travel and repeated measurements

Can the guide or insulated slat use the same line?

Only if the proposed tooling and process cover them. A guide rail may require another roll set or line, while an insulated slat may include additional assembly operations. Keep these items explicit in the quotation. Door safety and wind resistance require finished-system engineering and test evidence, separate from machine sample acceptance. See door-frame equipment for a different door-component process.

Separate the slat line from the complete door package

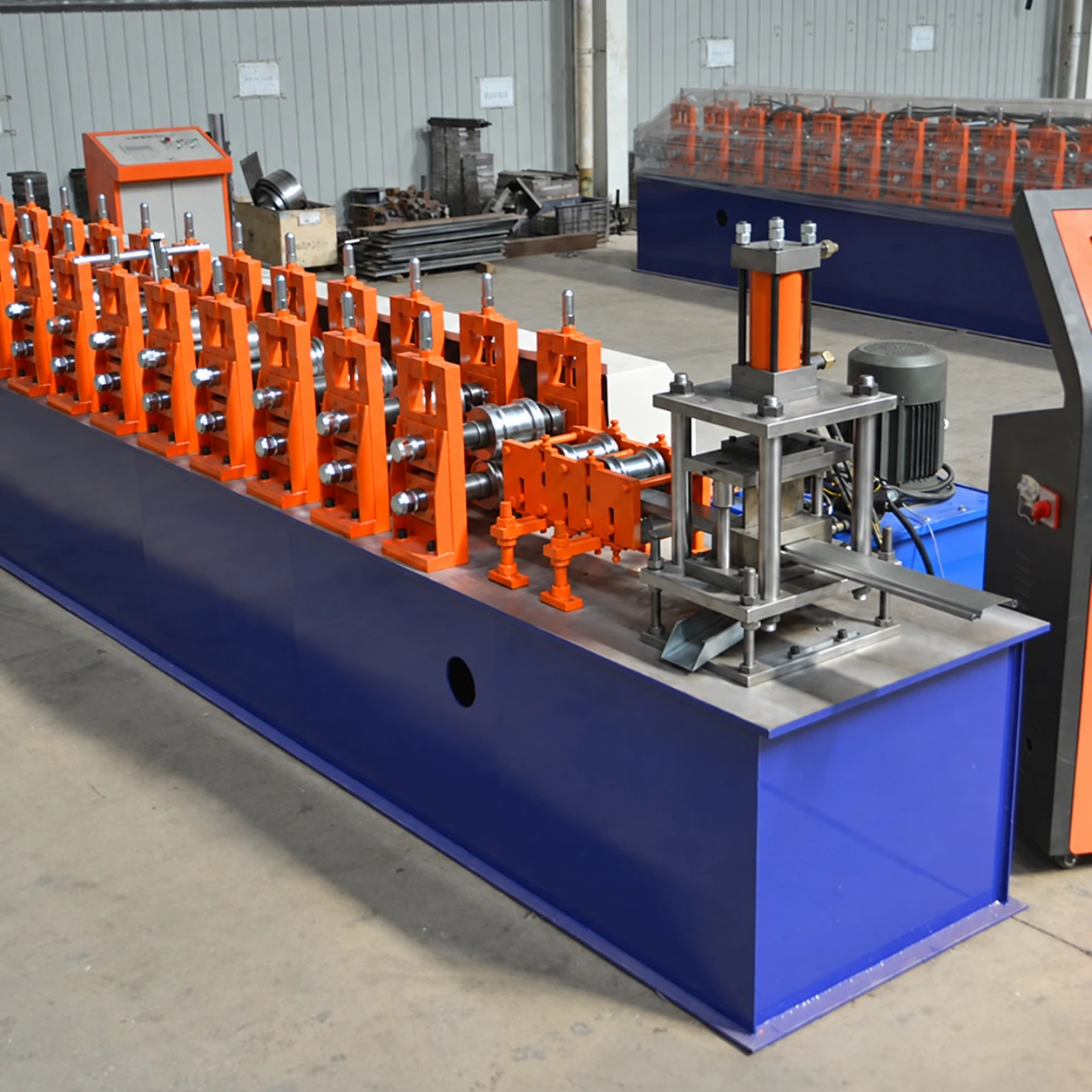

A shutter-door equipment example published by our Xiamen production base lists a material rack, entry guide, forming section, cutoff, hydraulic station and electrical controls. This process example does not establish a current offered model or the scope of a quotation. Guides, barrel, motor, installed-door controls and any insulated-slat assembly must be confirmed separately. Ask for a station-by-station scope drawing and list every separately supplied item.

For a useful proposal, send both the slat and guide drawings, material grade and coating, thickness range, coil width, perforation or end-retention layout, cut lengths, target output and intended application. Agree a trial that records several labeled slats assembled into a short curtain and checks their travel in the specified guide. Do not infer finished-door safety, wind resistance or installed performance from supplier catalog images. Ask for a dated photograph of the actual proposed line and labeled slat-and-guide trial parts before accepting a machine-specific claim.

What should a rolling shutter machine price include?

For a comparable quotation, first specify whether you need a slat-forming line or a wider door-production package. Request separate prices for the agreed slat tools and cutoff, optional punching, guide-rail tooling and any insulated-slat assembly. Barrel, motor, installed-door controls and finished-door testing must each be explicitly included or excluded; a machine headline price does not establish that scope.

• Profile and coil: use the same approved slat/interlock drawing, material, coating, thickness range and coil width for every supplier comparison.
• Output: define accepted slats at the required cut lengths, including punching, stopping, scrap and changeovers; forming speed alone is not a finished-output agreement.
• Trial: itemize repeat slat measurements and a short curtain fitted in the intended guide, with agreed inspection records.
• Support: identify electrical requirements, included tooling and spares, installation, training and after-sales responsibilities.
• Commercial basis: confirm currency, validity, delivery basis, freight and duties, and keep optional equipment separate from the base-line total.

Send your slat and guide drawings for a scoped quotation. Halcyon reviews these requirements before confirming an offered configuration and price. Catalogue photographs and historical search data do not establish a current selling price.
